| Applicable Industries | Manufacturing Plant, Energy & Mining, Other |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | PLC，bearing, Pressure vessel |
| Condition | New |
| Place of Origin | Guangzhou, China |
| Warranty | 1 Year |
| Key Selling Points | Famous brand PLC |
| Weight (kG) | 27 KG |
| Brand Name | JHN |
| Dimensions | 55x43x25cm |
| Usage | Battery Tabs Welding |
| Voltage | 220 |
| Power (kw) | 800W |
| Product Name | Ultrasonic Spot Welding Machine |
| Frequency | 40KHZ |
| Power | 800W |
| After-sales Service Provided | Free spare parts |
Product Application

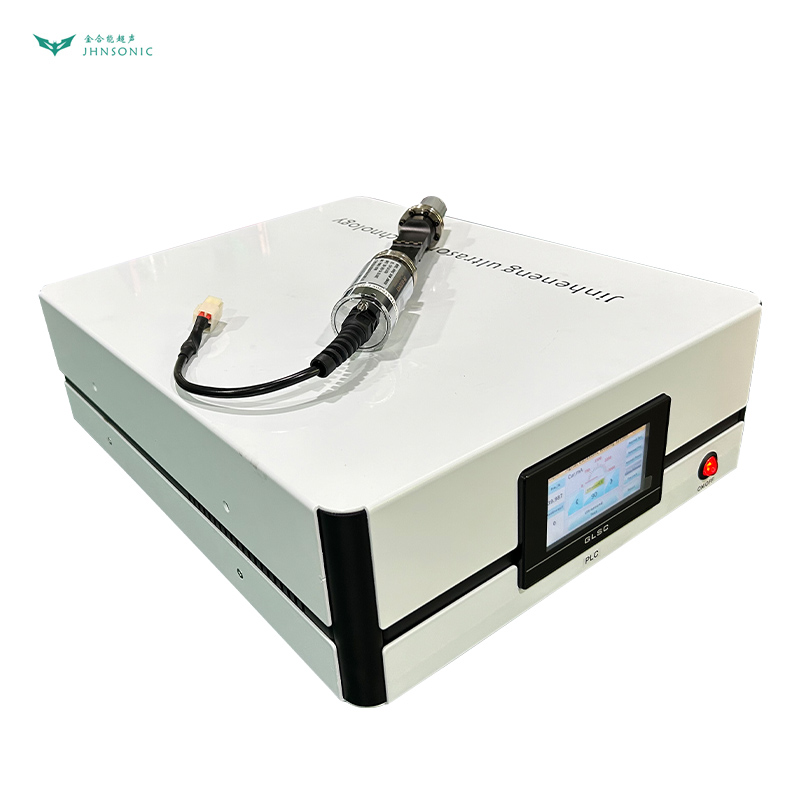

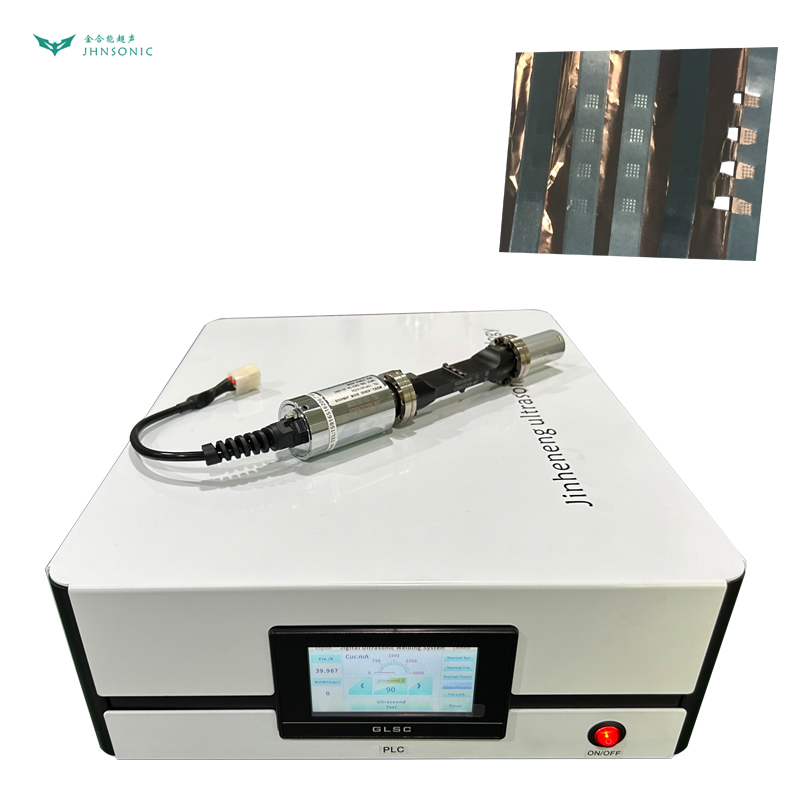

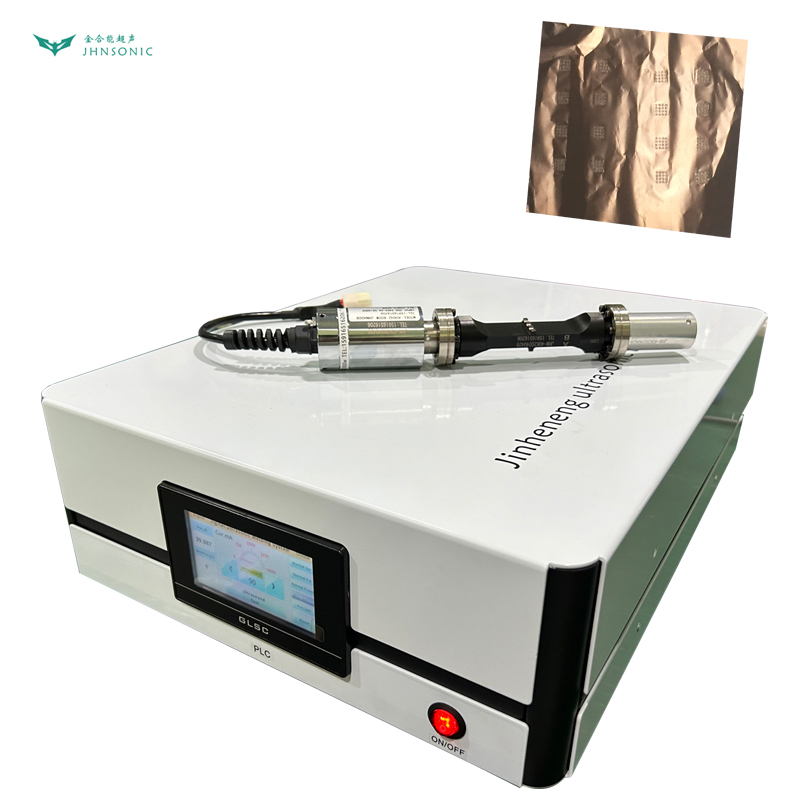

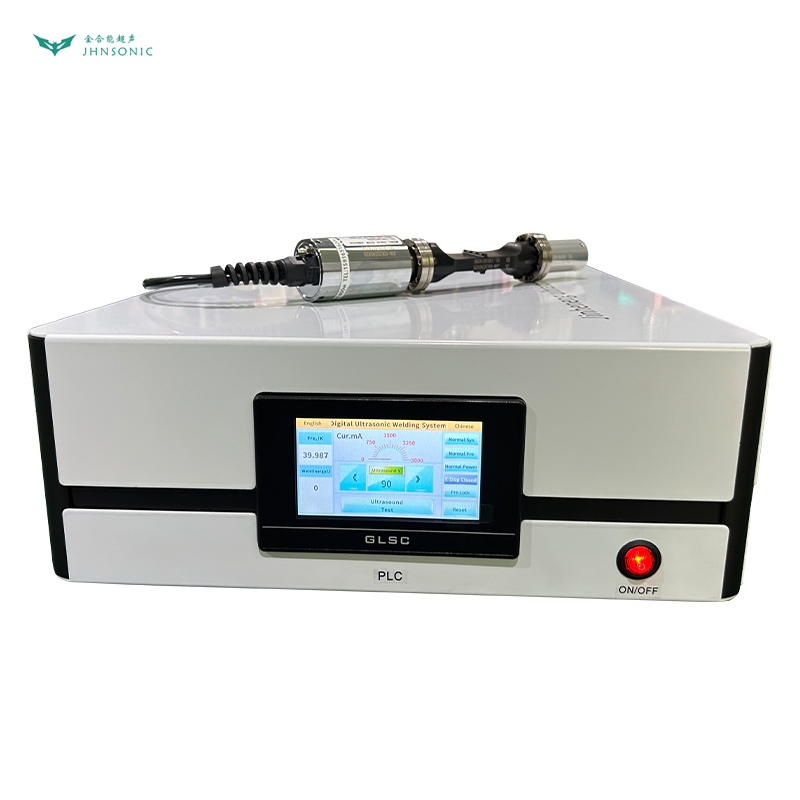

Wholesale 800W Ultrasonic Metal Spot Welding Machine for Lithium Ion Battery Battery Tab Welder
The high-power intelligent ultrasonic metal spot welding machine is specially designed for the welding of single& multilayer aluminum foil and copper foil, as well as the welding of multi-tabs batteries in parallel series. It adopts intelligent control mode, covering modes such as time, energy, power, and depth.
| Product name | Ultrasonic metal welding machine |
| Product No. | JHN4008-5 |
| Wave mode | Full wave negative electrode |
| Welding material | Weleld 0.06mm copper foil + 0.1mmnickel sheet |
| Power | 800W |
| Frequency | 40KHz |
| Head color | Silver+Black |
| Controller size | 55x43x25cm |
| Net weight | 12kg |
| Gross weight | 27kg |
