| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Lithium battery manufacturer |
| Showroom Location | None |
| Video outgoing-inspection | Not Available |
| Machinery Test Report | Not Available |
| Marketing Type | Hot Product |
| Warranty of core components | 1 Year |
| Core Components | PLC，bearing，Pressure vessel |
| Condition | New |
| Place of Origin | Guangdong, China |
| Warranty | 1 Year |
| Key Selling Points | Competitive Price |
| Weight (KG) | 45KG |
| Max. Welding Thickness | 2 |
| Usage | Lithium battery welding |
| Voltage | 220V |
| Power (kw) | 1000W |
| Ultrasonic power | 1000W-3000W |
| Ultrasonic frequency | 40KHz |
| Object of action | Metal |
| Mechanical type | Ultrasonic welding machine |
| After sales service provided | Online guidance Video support |
Product Features:
1. Using siemens programmable controller, the time can be accurate to milliseconds;
2. Advanced constant voltage vibration sub-circuit technology, with time, power, energy, etc.
3. The welding is firm, no welding, no cracking, no vibration, good residual area.
| Product model | Ultrasonicfrequency | Ultrasonic power | Dimension（cm） | Process range |
| JHN4010 | 40KHz | 1000W | 60X75X50cm | Battery factory |

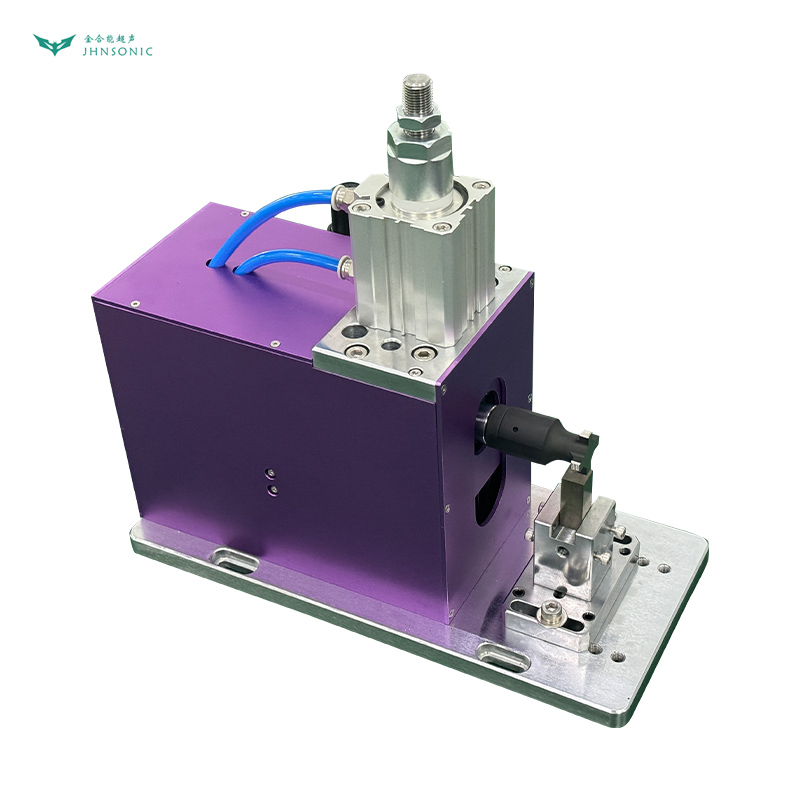

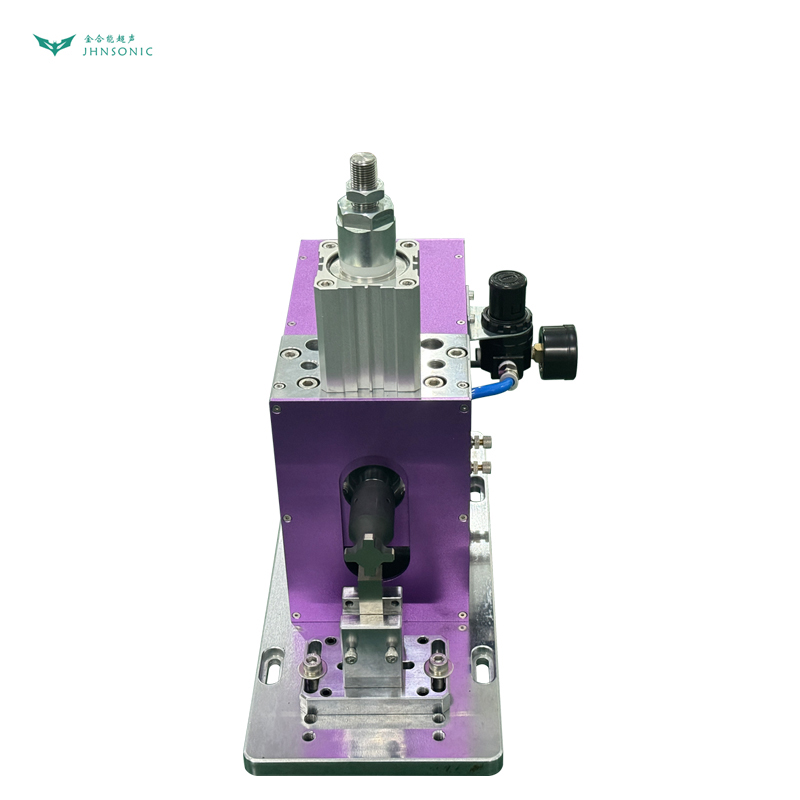

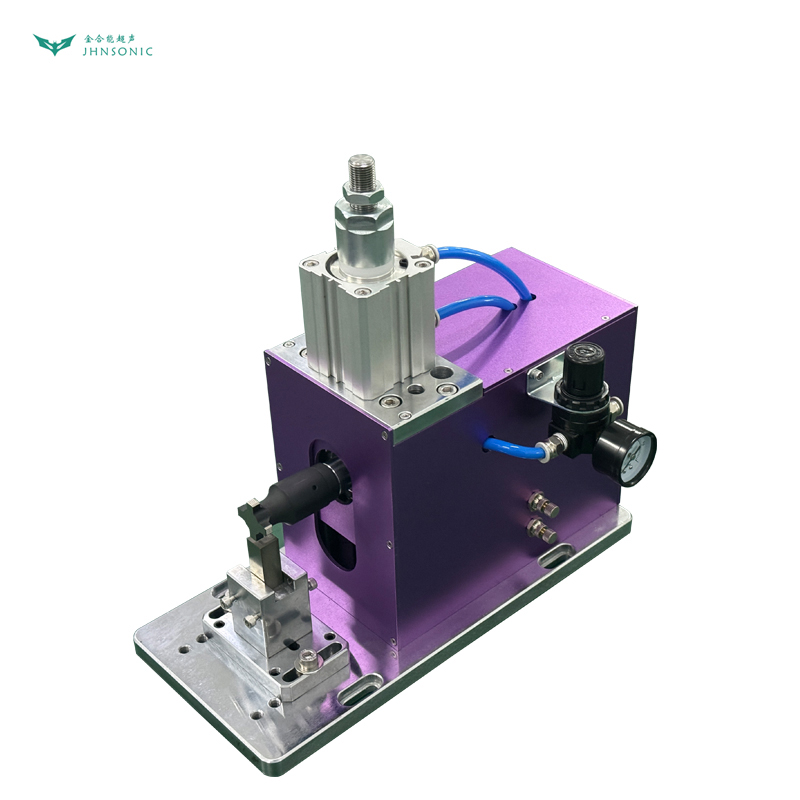

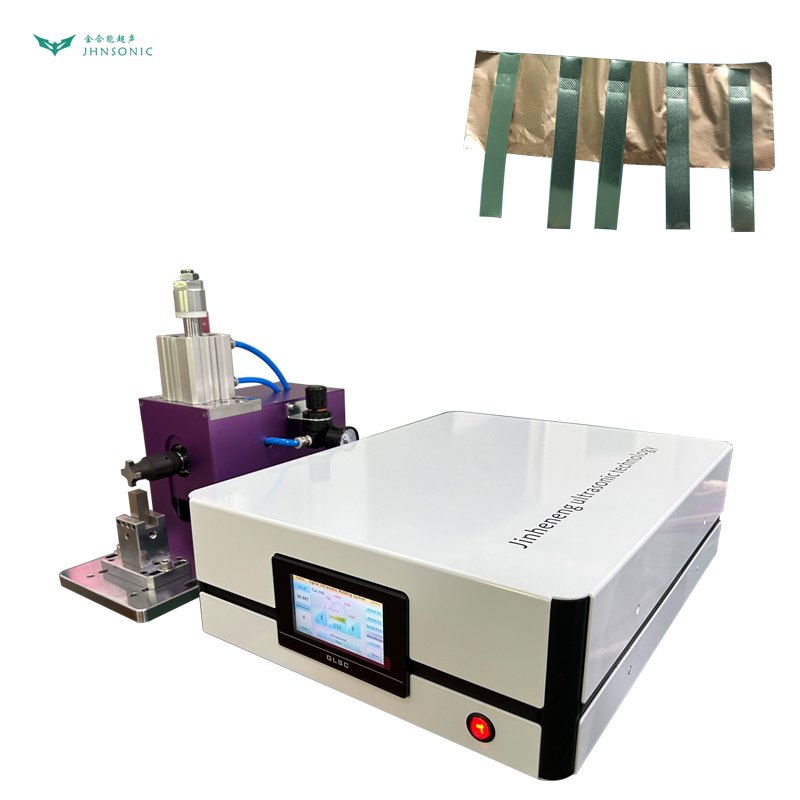

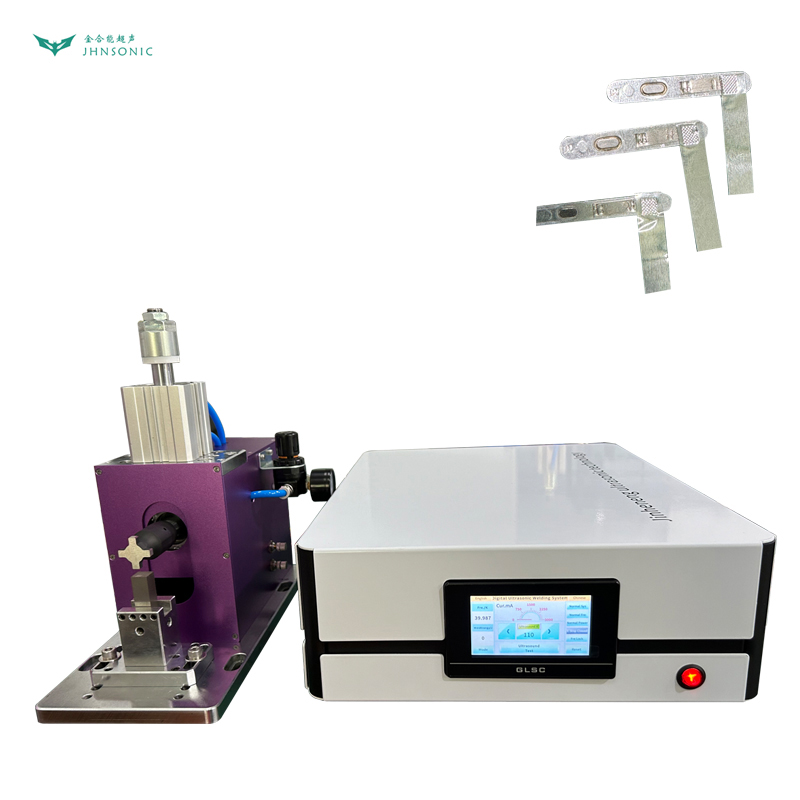

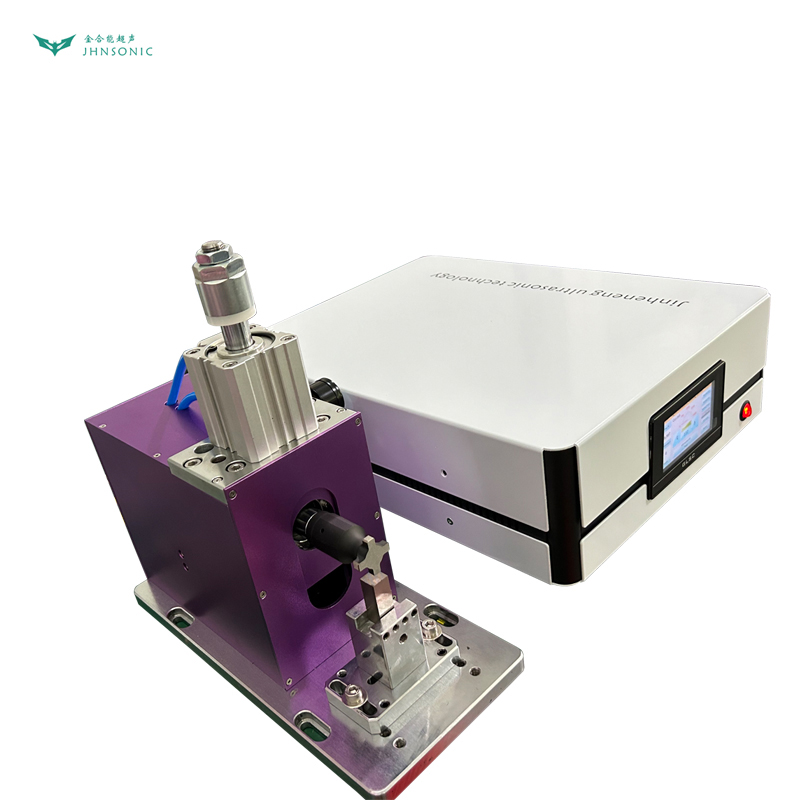

| Product name | Ultrasonic metal welding machine |
| Product No. | JHN4010 |
| Application | Battery cover plate |
| Core Components | Circuit + transducer mold |
| Net weight | 30kg |
| Welding materials types | Aluminum, nickel, copper |
| Manual or automatic welding | Manual, can be equipped with the automatic line to realize the automatic function |
| Head color | Purple |
| Air cylinder | On top of the head |
| Welding head | Can be replaced |
| Welding materials | Can weld 0.3mm-0.5mm wires, also with 0.6mm copper foil |
| Controller size | 55cmx45cmx20cm |
| Welder size | 50cmx35cmx45cm |
| Total size | 60cmx75cmx50cm |
| Net weight | 30KG |
| Gross weight | 45KG |
Package and delivery：
1. Standard exported package : Internal anti-collision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
