| Applicable Industries | Manufacturing Plant, Retail, Battery lab |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2025 |
| Warranty of core components | 1 Year |

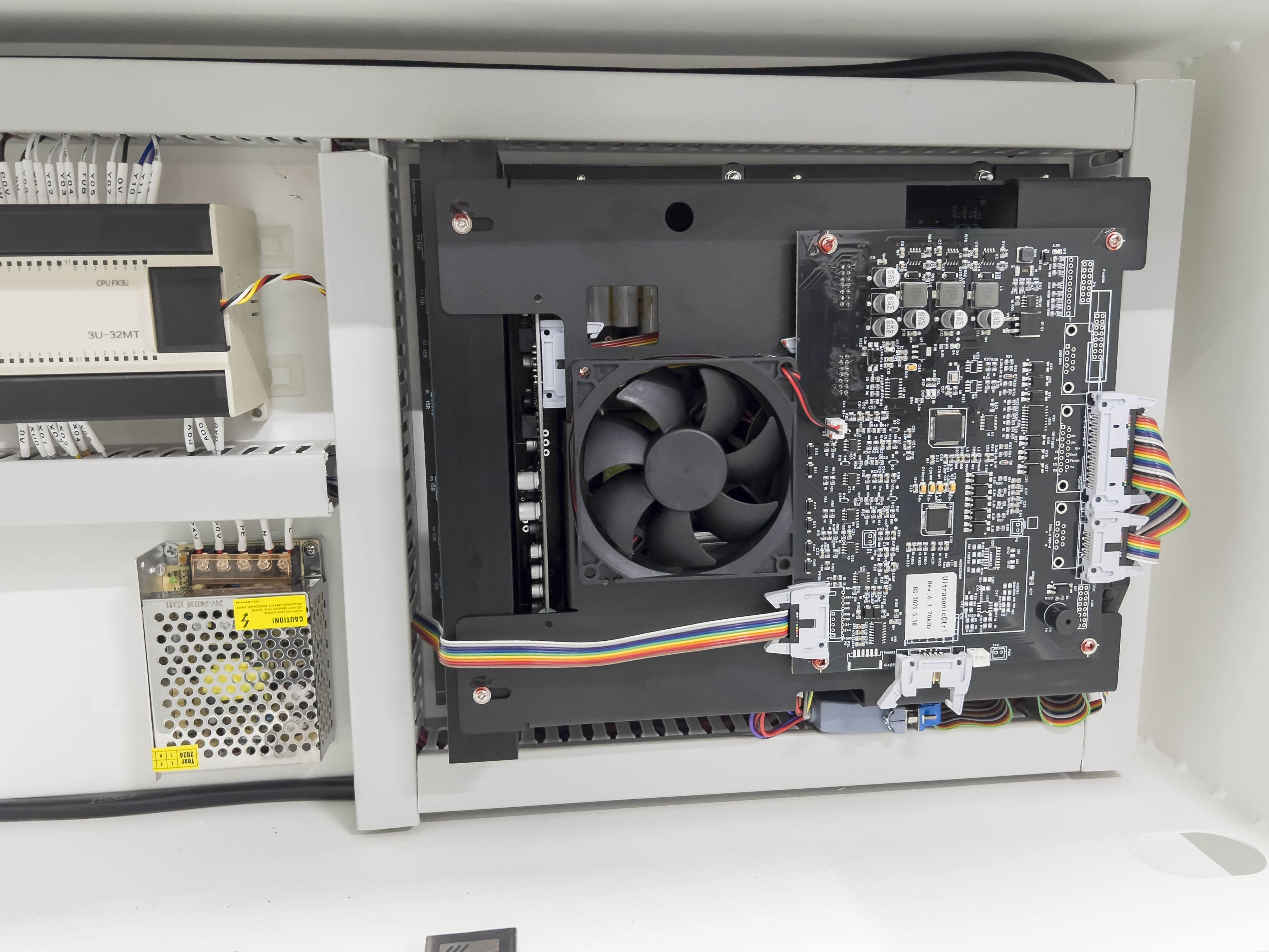

| Core Components | PLC |
| Condition | New |
| Place of Origin | Guangdong, China |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Weight (KG) | ±205 KG |
| Brand Name | JHN2080-T01 |
| Rated Capacity | 8000W |
| Rated Duty Cycle | 20KHZ |
| Max. Welding Area | Wire Harness welding,Terminals welding |
| Usage | Copper wire bundle welding, Aluminum wire bundle welding, Copper aluminum terminal welding |
| Voltage | AC220V/20Hz |
| Power (kw) | 8000W |

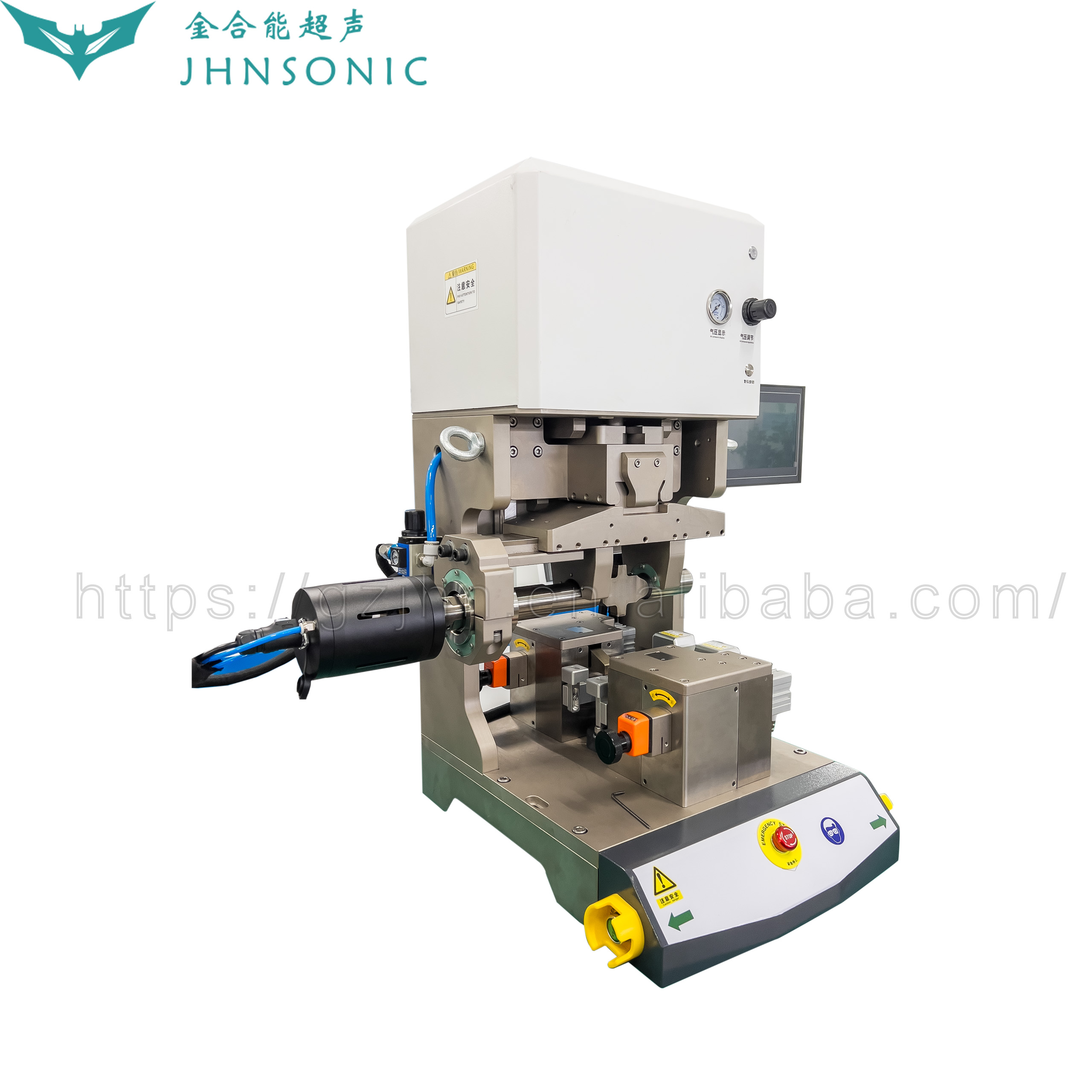

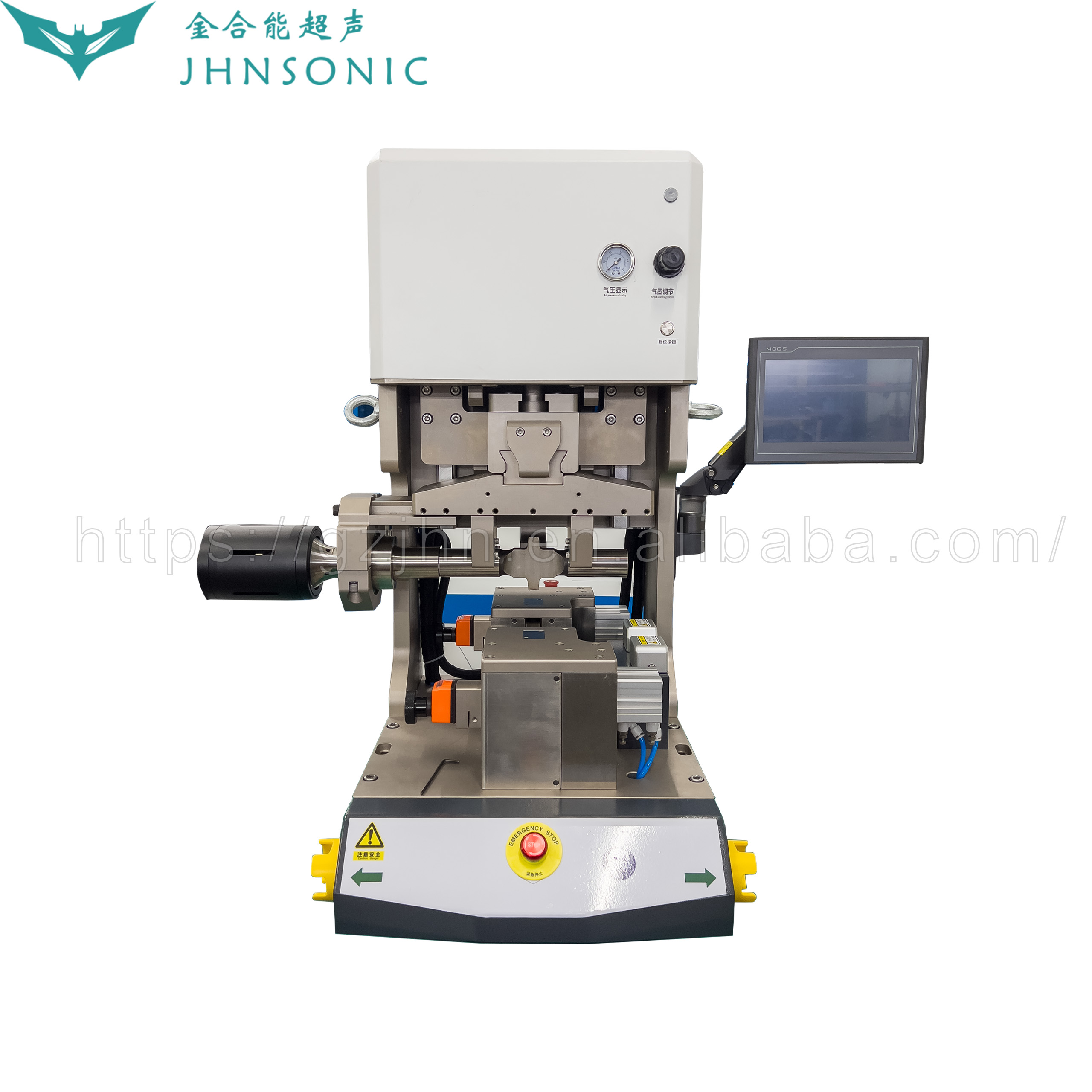

| Product Name | Ultrasonic Metal Terminals Welder |
| Input Voltage | 220V, 50Hz |
| Max.Power Consumption | 8000W, can be customized |
| Ultrasonic Frequency | 20KHz |
| Controller | 44cm(L)x57.8cm(W)x18.9cm(H) |

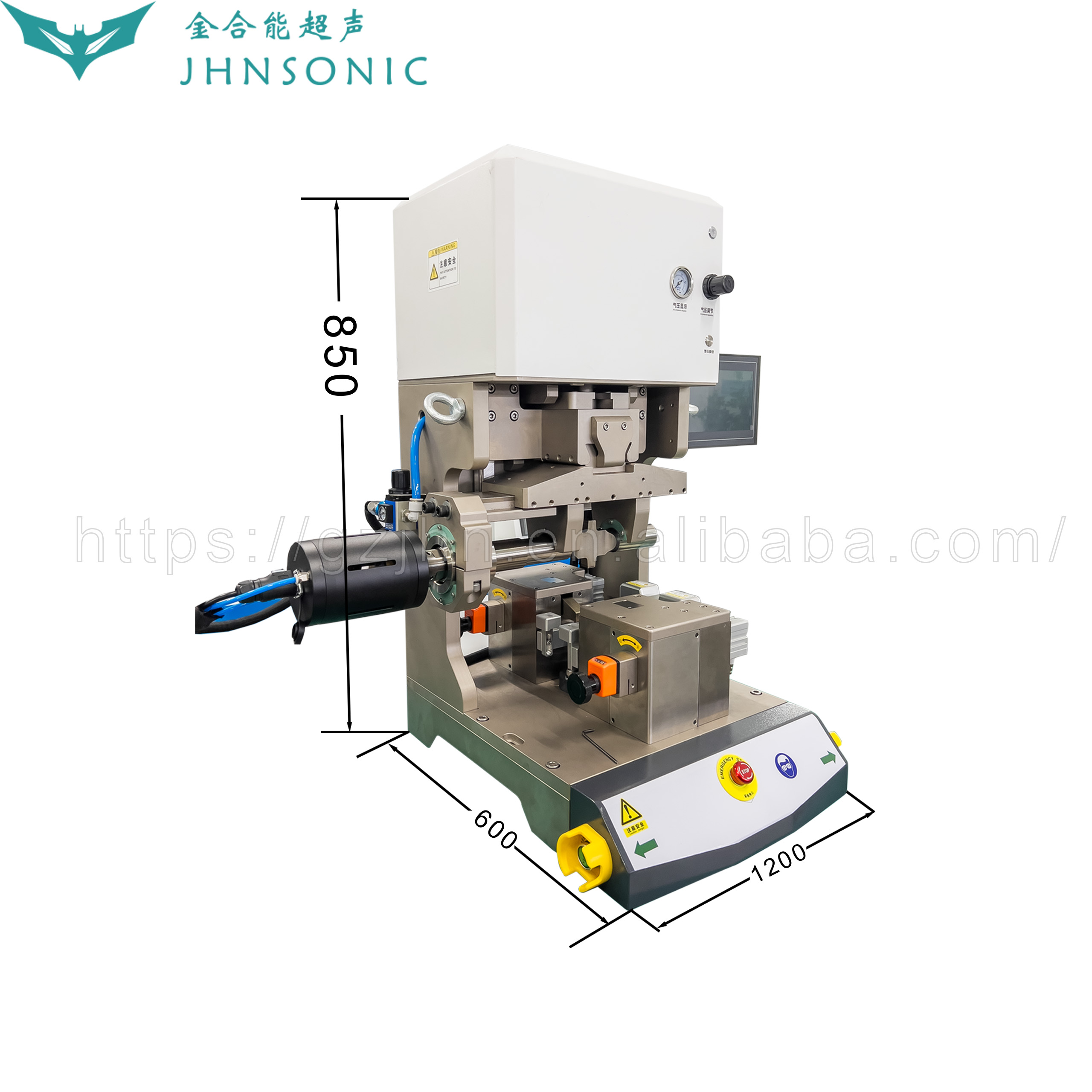

| Welder | 29cm(L)x54.7cmW)x56.4cm(H) |
| Net Weight | 205kg |
| Warranty | One Year limited warranty with lifetime support |
Product Description
The high-power ultrasonic metal spot welding machine is specially designed for the welding of single& multilayer aluminum foil and copper foil, as well as the welding of multi-tabs batteries in parallel series. It adopts intelligent control mode, covering modes such as time, energy, power, energy and depth.
Advantages

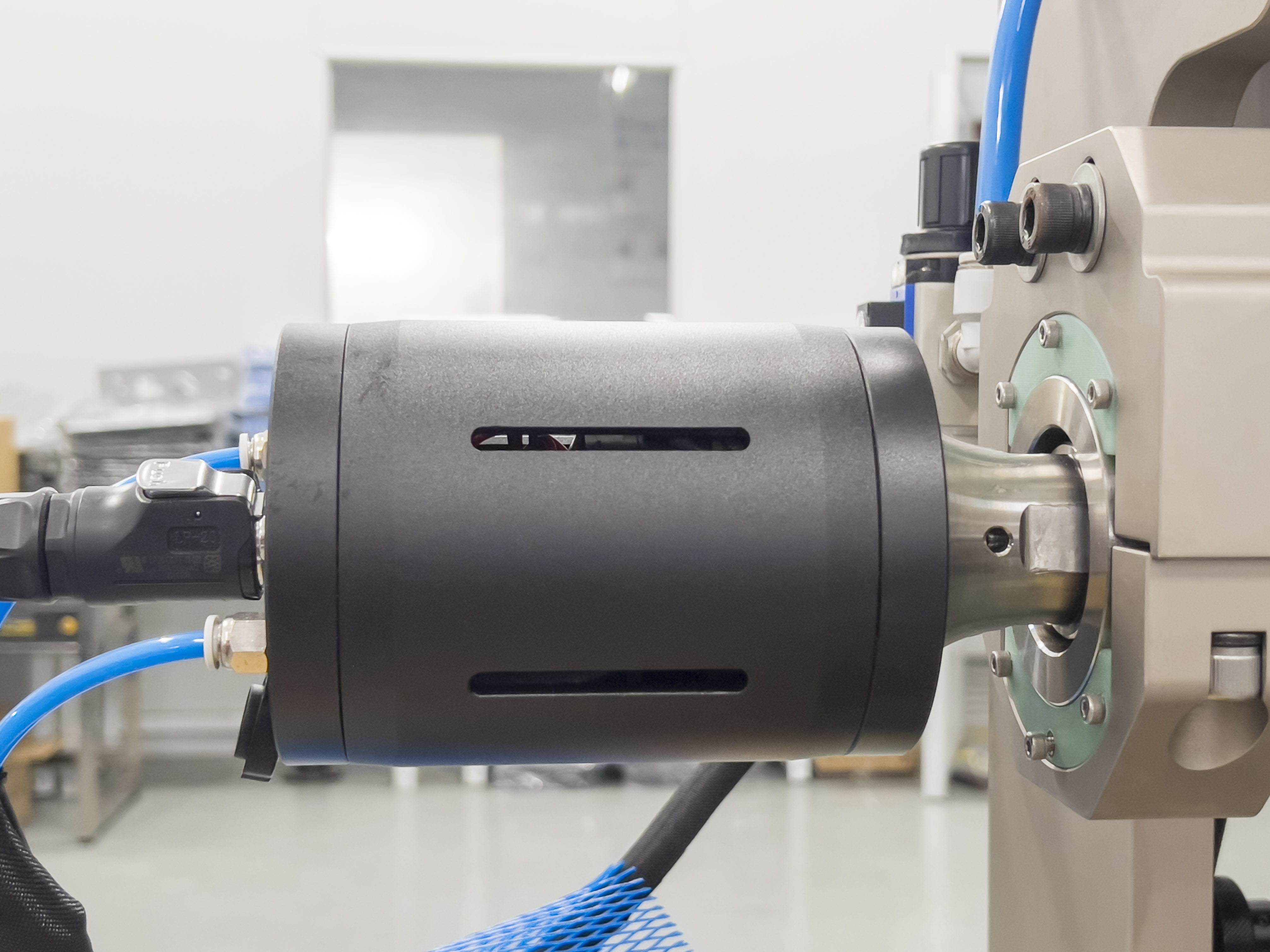

*High-quality ultrasonic transducer, strong power, good stability.
*Good conductivity and resistivity very low or almost near to zero.
*Oxidation or plating metal can be welded.
*Short weld time, no need additional flux, gas, solder.
*No welding sparks, environment protection and safety.
*Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude.
*Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
*Welding material does not melt non-fragile metal properties.
*Good conductivity and resistivity very low or almost zerot.
*Pairs of welding metal surfaces that require low, oxidation or plating can be welded.
| Product name | Ultrasonic metal welding machine |
| Product No. | JHN2080-T01 |
| Welding area | Wire Harness welding,Terminals welding |
| Air cylinder | Built-in cylinder |
| Head color | white + silver |
| Welding materials | copper, aluminum, palladium |
| Controller size | 44cm(L)x57.8cm(W)x18.9cm(H) |
| Welder size | 29cm(L)x54.7cmW)x56.4cm(H) |
| Net Weight | 205kg |
| Gross weight | ±250kg |
